Renault Trafic T800 Van Body Repair Manual PDF Download (1981–1989 Models)

Renault Trafic T800 Van Body Repair Manual PDF Download

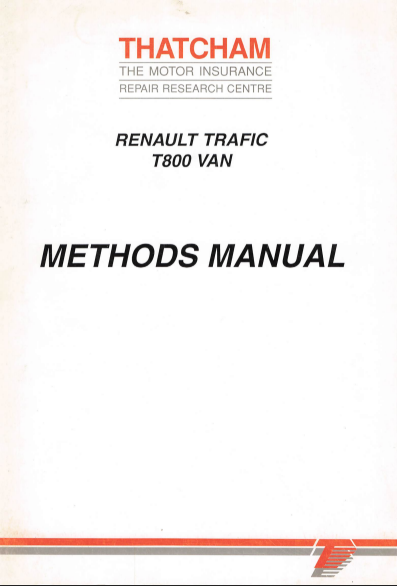

If you own, restore, or work on a classic Renault Trafic T800 Van from the 1980s, this detailed body repair manual PDF is a must-have. Tailored for mechanics, panel beaters, restorers, and DIY vehicle enthusiasts, this manual offers a comprehensive guide to repairing, replacing, and aligning body panels and components on the Renault Trafic T800 range, covering models from the early 1980s up to the end of the decade.

Instant PDF Download — No Waiting, No Shipping

This is a digital product. As soon as you complete your purchase, you’ll receive an instant PDF download link. No physical book will be sent. View it on your phone, tablet, or laptop, or print pages as needed — perfect for workshop use or on-the-go reference.

What's Included in This Repair Manual

This manual includes full technical instructions and diagrams for the Renault Trafic T800 Van, covering:

• Complete body panel replacement methods
• Welding and sealing guides for structural repairs
• Exploded parts illustrations for accurate identification
• Paint refinishing guidelines, including prep and finishing stages
• Replacement time schedules to assist in labour estimation
• Panel-by-panel breakdown for the front end, side panels, rear end, and doors

Each section includes precise instructions on removing damaged panels and fitting replacements, with clear reference diagrams, welding instructions (spot welds, plug welds, seam welds), and specific notes about tools and procedures.

Vehicle Coverage

This manual is suitable for the following Renault Trafic T800 Van variants released between 1981 and the late 1980s:

• Short and long wheelbase models
• High roof versions
• Petrol and diesel configurations (1397cc, 1647cc, 2068cc)
• Front and rear-wheel drive models

Why Buy This Manual?

The Renault Trafic T800 is increasingly considered a classic commercial van. As parts become rarer and fewer professionals have hands-on knowledge, having access to an authentic, original repair guide becomes invaluable.

This manual was originally written for professional use, providing robust reference material for structural and cosmetic body repairs. Unlike general service manuals or Haynes-style books, this guide focuses entirely on body repairs, including complex panel replacements and factory-correct welding techniques.

Benefits:

• Gain confidence in carrying out structural body repairs
• Save time with factory-derived panel removal/replacement steps
• Accurately assess damage and repair time estimates
• Identify correct jacking points, fastener locations, and welding patterns
• Ideal for restorers seeking OEM-correct restoration

Topics Covered in Detail

Front End Repairs

• Headlamp panel removal & installation
• Front crossmember procedures
• Bonnet landing panel and bonnet fitting
• Front wings and wheel arch guidance
• Front door and door skin removal, welding, and refinishing

Side Panel Repairs

• Outer sill replacement, including MIG plug and seam weld locations
• Side loading door and doorskin replacement
• RH front bodyside panel and B-pillar replacement, including reinforcement points

Rear End Repairs

• LH rear bodyside panel and corner section repairs
• Rear door and door skin restoration
• Petrol tank removal and installation instructions

Structural & Paint Timing Guides

• Welding tables for all panels, including plug weld counts and locations
• Sealing diagrams to maintain corrosion resistance
• Estimated time schedules for each job, ideal for workshop planning or quotations
• Paint system timing — with allowances for different finishes

Perfect For:

• Vehicle restorers and classic van enthusiasts
• Independent repair shops and panel beaters
• DIY hobbyists restoring a Renault Trafic T800
• Collectors looking to preserve bodywork accuracy

Format Details:

• Format: PDF
• Delivery: Instant digital download
• Pages: Approx. 30+ detailed sections with diagrams
• Language: English
• Compatibility: Viewable on all devices, printable by page

Why Digital?

Rather than buying a used or outdated physical copy, this PDF version is portable, searchable, and instantly accessible. Save space in your garage and access instructions right from your device — even while working under the van.

Start Your Restoration with Confidence

Whether you're replacing a front wing, welding in a sill, or just trying to understand how the panels were constructed at the factory, this body repair guide is your go-to reference.

Click ‘Add to Cart’ to get instant access and start working on your Renault Trafic T800 Van with the confidence that you have the right instructions at your side.
